Get started with Local Studio

Use Brain Builder for AITRIOS to train and export models for simple, small-scale use cases locally on your PC or server. Use Inspector for AITRIOS to visualize inference results and output predictions using industrial protocols.

Brain Builder for AITRIOS quick start

Build AI models with no coding, using minimal data, and easy setup on your PC or server.

*Only available for Console V1 (coming soon for Console V2).


Install Brain Builder for AITRIOS

Download, install and activate your license

Have one of the following supported edge devices ready:

Raspberry Pi AI Camera product image
Sony AIH-IVRW2 product image
Rayprus CSV26 product image
Triton Smart product image

Raspberry Pi AI Camera

Sony AIH-IVRW2

Rayprus CSV26

Triton Smart

Download the Brain Builder for AITRIOS installation package and CodeMeter User Runtime to activate and manage your license.

Install Brain Builder icon

Install Brain Builder for AITRIOS

Streamline AI model development for edge devices with a visual low-code environment.
Key functions: dataset management, training, versioning, annotation, deployment, and analytics.

Video tutorial

Brain Builder for AITRIOS installation and license activation

Related docs

Get Started Guide: Introduction ❯

Get Started Guide: Installing Brain Builder for AITRIOS ❯

Brain Builder Device Operation Guide ❯


Create a dataset

Capture images for training your model

For best results, try to capture your own training images in your specific production environment. To do so, please check the table below and use the tool compatible with your edge device:

Raspberry Pi AI Camera

AIH-IVRW2

CSV26

Triton Smart

Raspberry Pi AI Camera

AIH-IVRW2

Console/Local Console

CSV26

Console/Local Console

Triton Smart

Dataset requirements for each AI model type:
Classifier

Only one object/product in each image

Min. resolution: 256x256px

50+ images per class

Detector

Variations of the objects and multiple objects in each image

Min. resolution: 320x320px

50+ images and 150+ tagged objects per class

Anomaly Hi-Fi

Only one object/product in each image

Controlled image conditions.

Min. resolution: 256x256px (coarse and regular defects) and 512x512px (fine and ultra-fine defects)

No. of images: 50+ images for "Normal" and 5-10 images of anomalies

Note: Anomaly Hi-Fi is not currently available for Local Edition.

Related docs

Train AI models

Select one of the AI model templates

Select the type of AI Model you want build from Classifier, Detector, and Anomaly Recognizer/Hi-Fi Models:

Classifying products as good or bad on a production line
Detecting protective equipment such as vests, helmets on factory workers

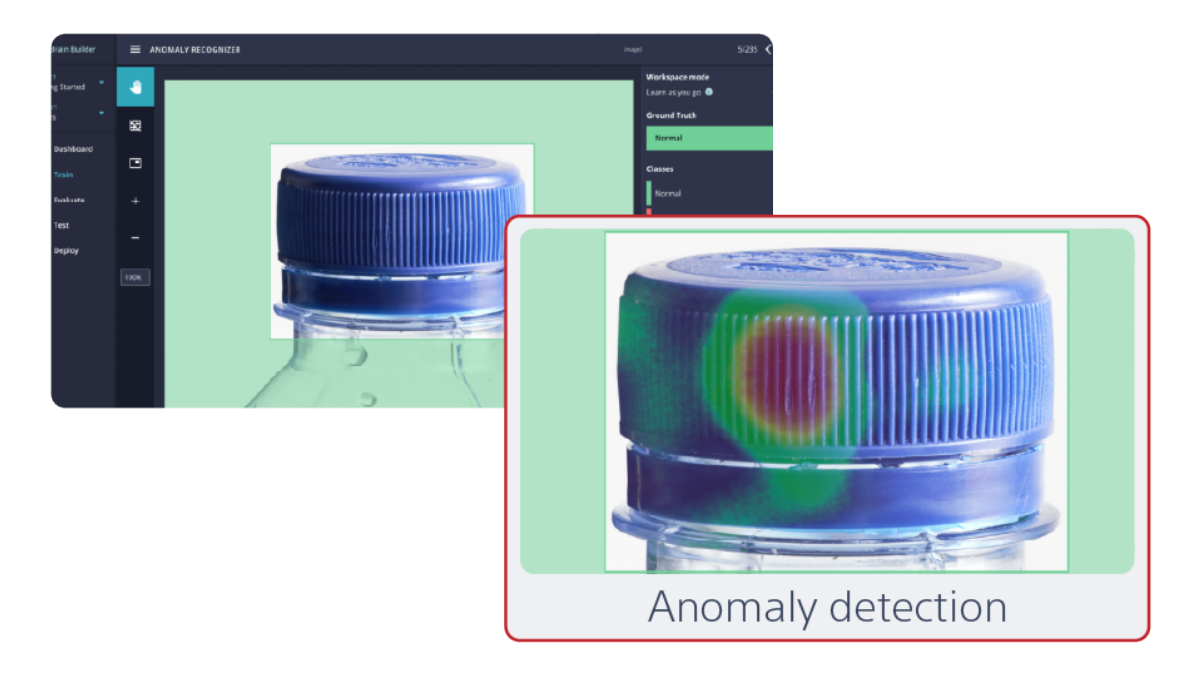

Anomaly detection on a plastic bottle cap
Classifier

Classifies images into predefined classes, providing labels ranked by confidence

Detector

Identifies and locates multiple objects within an image.

Anomaly Hi-Fi

Identifies anomalies and it can also localize areas of possible anomalies with a heatmap (Hi-Fi).

Upload your training dataset, annotate, train, evaluate and fine-tune your model in Brain Builder for AITRIOS. When you are satisfied with the evaluation results, export the optimized classifier, detector, or anomaly model package.

Video tutorials

Build a Classifier AI Model

Build an Object Detection AI Model

Build an Anomaly Detection AI Model

Related docs

Deploy to AI camera

Deploy and run your AI models

Deploy your exported AI model directly to your edge device that is ready for inference.

Use the compatible tool for your device to deploy and visualize the inference results of your model:

Raspberry Pi AI Camera

AIH-IVRW2

CSV26

Triton Smart

Raspberry Pi AI Camera

AIH-IVRW2

Console/Local Console

CSV26

Console/Local Console

Triton Smart

Related docs

Inspector for AITRIOS quick start

Manage the Triton Smart cameras that run AI models developed in Brain Builder for AITRIOS, visualize results, and output predictions.


Set up your device

Get your device ready, connect and update it

Have the following edge device ready:

Triton Smart camera product image

Triton Smart


Download and install ArenaView MP from LUCID Vision Labs.

Connect the camera to your PC using ArenaView MP and make sure you update the camera firmware to the latest version. Additionally, check that you have the latest version for the IMX500 chip firmware. In case you don't, download it from here.

Related docs

Install Inspector for AITRIOS

Download, install and connect to Brain Builder for AITRIOS

Download and install Inspector for AITRIOS on the same PC as ArenaView MP.

Connect Inspector for AITRIOS to Brain Builder for AITRIOS and choose the type of connection - on the local network or cloud.

You will need also need to:

• Define your inputs by connecting your camera to Inspector for AITRIOS

• Define the output protocol - Inspector for AITRIOS supports Modbus TCP, Ethernet/IP, or Neurala's C++ plugin

• Choose data folder location

• Set environment variable for inspection

Related docs

Create a dataset

Capture images for training your model

Prepare the objects you wish to capture. You can use the feature for capturing images directly from the connected cameras in Inspector for AITRIOS. For best results, try to capture your own training images in your specific production environment.

Dataset requirements for each AI model type:
Classifier

Only one object/product in each image

Min. resolution: 256x256px

50+ images per class

Detector

Variations of the objects and multiple objects in each image

Min. resolution: 320x320px

50+ images and 150+ tagged objects per class

Anomaly Hi-Fi

Only one object/product in each image

Controlled image conditions.

Min. resolution: 256x256px (coarse and regular defects) and 512x512px (fine and ultra-fine defects)

No. of images: 50+ images for "Normal" and 5-10 images of anomalies

Related docs

Train AI models

Select one of the AI model templates

Launch Brain Builder for AITRIOS, start a project, and select the type of AI Model you want build from Classifier, Detector, and Anomaly Recognizer/Hi-Fi Models:

Classifying products as good or bad on a production line
Detecting protective equipment such as vests, helmets on factory workers
Anomaly detection on a plastic bottle cap
Classifier

Classifies images into predefined classes, providing labels ranked by confidence.

Detector

Identifies and locates multiple objects within an image.

Anomaly Hi-Fi

Identifies anomalies and it can also localize areas of possible anomalies with a heatmap (Hi-Fi).

Upload your training dataset, annotate, train, evaluate and fine-tune your model in Brain Builder for AITRIOS. When you are satisfied with the evaluation results, export the optimized classifier, detector, or anomaly model package.

Video tutorials

Build a Classifier AI Model

Build an Object Detection AI Model

Create an Anomaly Recognizer/Hi-Fi AI Model

Related docs

Deploy to Triton Smart Camera

Deploy and run your AI models

After exporting your AI model from Brain Builder for AITRIOS, make sure you have the ZIP file with the model on the PC with Inspector for AITRIOS and ArenaView MP installed.

To visualize the results, you will need to deploy your AI model to both the Triton Smart camera and to Inspector for AITRIOS.

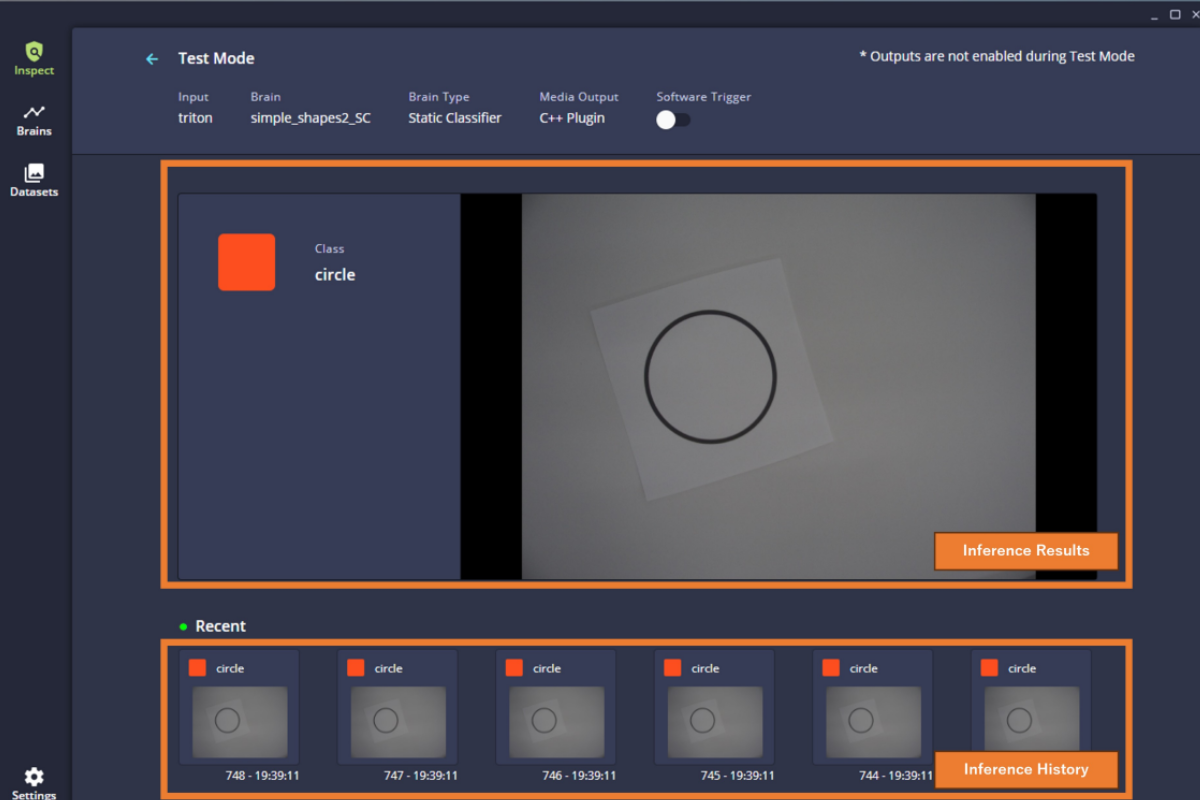

You will be able to see the inference result in the Inspect screen from Inspector for AITRIOS.

Inspect screen interface in Inspector
